Cert Renew Fail

z929669 · January 22, 2021, 12:32am

Please fill out the fields below so we can help you better. Note: you must provide your domain name to get help. Domain names for issued certificates are all made public in Certificate Transparency logs (e.g. https://crt.sh/?q=example.com), so withholding your domain name here does not increase secrecy, but only makes it harder for us to provide help.

My domain is: stepmodifications.org

I ran this command: certbot renew --dry-run

It produced this output:
IMPORTANT NOTES:

The following errors were reported by the server:

Domain: stepmodifications.org
Type: unauthorized
Detail: Invalid response from
http://stepmodifications.org/.well-known/acme-challenge/JlrUGjnsy-z1vzWVYCgcOQzWBv-hJcgpMw8T41zdoC4
[138.197.49.211]: "\r\n403
Forbidden\r\n\r\n

403
Forbidden
\r\n
nginx\r\n"
To fix these errors, please make sure that your domain name was
entered correctly and the DNS A/AAAA record(s) for that domain
contain(s) the right IP address.
The following errors were reported by the server:

Domain: www.stepmodifications.org
Type: unauthorized
Detail: Invalid response from
http://www.stepmodifications.org/.well-known/acme-challenge/mStaMQ-aG9GmTFf9uxexhb8XT4CSVq4pRsF5ztloMGc
[138.197.49.211]: "\r\n403
Forbidden\r\n\r\n

403
Forbidden
\r\n
nginx\r\n"
To fix these errors, please make sure that your domain name was
entered correctly and the DNS A/AAAA record(s) for that domain
contain(s) the right IP address.

My web server is (include version): nginx 1.19.6

The operating system my web server runs on is (include version): CentOS 7

My hosting provider, if applicable, is: DigitalOcean

I can login to a root shell on my machine (yes or no, or I don't know): yes

I'm using a control panel to manage my site (no, or provide the name and version of the control panel): n/a shell only

The version of my client is (e.g. output of certbot --version or certbot-auto --version if you're using Certbot): 1.10.1

I have been running Certbot to renew my Letsencrypt certs for a few years now, so my config is 'good'. The issue seems to have begun on Dec 24, 2020 as determined from the logs. I renew via cron task, which worked for about a year on this server up to that point. I use the same method on another server (past 2 years) and have had no issues there.

Note that my server is IP restricted, so if anyone wants to help, I will need to clear your IP or IP range.

Thanks in advance!

_az · January 22, 2021, 1:14am

In the nginx config, what scope/element is this restriction on?

If it's scoped to the server {} or even higher in http {}, it might be interfering with with the validation process.

There's two pieces of information that would help here:

/etc/letsencrypt/renewal/stepmodifications.org.conf (so we know which authenticator you are using, nginx or webroot or whatever)
The nginx config for that virtual host

z929669 · January 22, 2021, 1:26am

Thanks for the quick reply. My applicable nginx config (including a bit more, since it's connected to what you are inerested in seeing:

server {

	listen 80;
	listen [::]:80;
	server_name _ default_server;

	return 301 https://$host$request_uri;
}

# SEND WWW REQUESTS TO NON-WWW
server {

	listen 443 ssl http2;
	listen [::]:443 ssl http2;
	server_name www.stepmodifications.org;

	# *** SSL CONFIG **********************************************************************
	include inc/main_letsencrypt.conf;

	ssl_certificate /etc/letsencrypt/live/www.stepmodifications.org/fullchain.pem;
	ssl_certificate_key /etc/letsencrypt/live/www.stepmodifications.org/privkey.pem;
	ssl_trusted_certificate /etc/letsencrypt/live/www.stepmodifications.org/chain.pem;

	include inc/main_ssl.conf;
	# *** STD CONFIG **********************************************************************

	# SSL CERT REQUIRES RESOLUTION OF THE URL BEFORE REDIRECT; THIS IS WHY THE REDIRECT IS WRAPPED INSIDE THE LOCATION BLOCK
	location / {
		root /srv/sites;
		return 301 $scheme://stepmodifications.org$request_uri;
	}
}

# REDIRECT OLD SITE REQUESTS TO THE NEW SITE
#server {
#	server_name step-project.com www.step-project.com forum.step-project.com wiki.step-project.com;
#		return 301 $scheme://stepmodifications.org$request_uri;
#		rewrite ^/(.*)$ http://stepmodifications.org/$1 permanent;
#}

# SITES
server {

	listen 443 ssl http2;
	listen [::]:443 ssl http2;
	server_name stepmodifications.org;
	root /srv/sites;

#	access_log		/var/log/nginx/wiki_access.log;
#	error_log		/var/log/nginx/wiki_error.log debug;
#	rewrite_log on;

	index index.php index.html;

	client_max_body_size 5M;

	# *** SSL CONFIG **********************************************************************
	include inc/main_letsencrypt.conf;

	ssl_certificate /etc/letsencrypt/live/stepmodifications.org/fullchain.pem;
	ssl_certificate_key /etc/letsencrypt/live/stepmodifications.org/privkey.pem;
	ssl_trusted_certificate /etc/letsencrypt/live/stepmodifications.org/chain.pem;

	include inc/main_ssl.conf;

	# *** STD CONFIG **********************************************************************

	# REDIRECT BASE DOMAIN URL TO WIKI
	rewrite ^/$ /wiki;

	# See: https://www.semantic-mediawiki.org/wiki/Help:Pretty_URIs
	rewrite ^/id/(.*) /wikidev/Special:URIResolver/$1;

	include inc/main_common.conf;
#	include inc/main_wiki.conf;
	include inc/main_mwiki.conf;
	include inc/main_wikidev.conf;
	include inc/main_forumdev.conf;
#	include inc/main_forum.conf;
#	include inc/main_ipb3.conf;
	include inc/main_ipb4.conf;
	include inc/main_phpmyadmin.conf;
	include inc/main_phpcheck.conf;
}```


Contents of `/etc/letsencrypt/renewal/stepmodifications.org.conf`:

```# renew_before_expiry = 30 days
version = 1.0.0
archive_dir = /etc/letsencrypt/archive/stepmodifications.org
cert = /etc/letsencrypt/live/stepmodifications.org/cert.pem
privkey = /etc/letsencrypt/live/stepmodifications.org/privkey.pem
chain = /etc/letsencrypt/live/stepmodifications.org/chain.pem
fullchain = /etc/letsencrypt/live/stepmodifications.org/fullchain.pem

# Options used in the renewal process
[renewalparams]
account = b055ae991844812219a7fe94b49167fd
server = https://acme-v02.api.letsencrypt.org/directory
authenticator = webroot
webroot_path = /var/lib/letsencrypt,
renew_hook = systemctl reload nginx
[[webroot_map]]
stepmodifications.org = /var/lib/letsencrypt

_az · January 22, 2021, 1:28am

If that's how you've got things setup, then you should also have this somewhere:

location /.well-known/acme-challenge/ {
  root /var/lib/letsencrypt;
}

I don't see any allow/deny in the snippets you have pasted, so the location of those rules might still be a factor.

z929669 · January 22, 2021, 2:01am

Yes, I have .well-known as an include as well as the allow/deny stuff. This is all working server config. I decided to simply comment out the ssl_* snippets in the server config and setting the server to listen at port 80 for these. Then un/reinstalled certbot and renamed my /etc/letsencrypt. Then I recreated /etc/letsencrypt and regenerated the dhparam and ran certbot like certbot certonly --rsa-key-size 2048 --webroot --agree-tos --no-eff-email --email admin@stepmodifications.org -w /var/lib/letsencrypt/ -d www.stepmodifications.org. Then I uncommented the ssl_* snippets and reset the ports to 443, restarted nginx ... all back to normal now.

This is a DO DEV droplet that I had yum-updated a while back. I have restored it and done a bunch of other server ops stuff, so my guess is that I somehow got my certs out of sync or invalidated the auth keys somehow via interruption or something. Nothing about the ssl cert process was ever touched, so this is the only explanation I have.

All better now though. Thanks for the assistance!

z929669 · January 23, 2021, 2:56am

so after some more checking after successfully renewing certs via uninstall/reinstall of certbot, I am still unable to perform a successful dry run. This is inexplicable to me, having just successfully reinstalled the certs.

May I have some help troubleshooting reasons for fail of certbot renew --dry-run?

updated certbot, successfully created certs, and then failed dry run immediately after. Updated certbot just prior to these actions just minutes ago: certbot 1.11.0

The website is accessible and shows valid cert.

Following is my last log trace:

2021-01-23 02:43:45,472:INFO:certbot._internal.auth_handler:Cleaning up challenges
2021-01-23 02:43:45,472:DEBUG:certbot._internal.plugins.webroot:Removing /var/lib/letsencrypt/.well-known/acme-challenge/KBzh3VaxDXn6brIDl20VWRKLyiw59xqRezYqFMaH6Ec
2021-01-23 02:43:45,473:DEBUG:certbot._internal.plugins.webroot:All challenges cleaned up
2021-01-23 02:43:45,473:ERROR:certbot._internal.renewal:Failed to renew certificate stepmodifications.org with error: Some challenges have failed.
2021-01-23 02:43:45,474:DEBUG:certbot._internal.renewal:Traceback was:
Traceback (most recent call last):
  File "/usr/lib/python2.7/site-packages/certbot/_internal/renewal.py", line 471, in handle_renewal_request
    main.renew_cert(lineage_config, plugins, renewal_candidate)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/main.py", line 1235, in renew_cert
    renewed_lineage = _get_and_save_cert(le_client, config, lineage=lineage)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/main.py", line 124, in _get_and_save_cert
    renewal.renew_cert(config, domains, le_client, lineage)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/renewal.py", line 331, in renew_cert
    new_cert, new_chain, new_key, _ = le_client.obtain_certificate(domains, new_key)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/client.py", line 374, in obtain_certificate
    orderr = self._get_order_and_authorizations(csr.data, self.config.allow_subset_of_names)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/client.py", line 421, in _get_order_and_authorizations
    authzr = self.auth_handler.handle_authorizations(orderr, best_effort)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/auth_handler.py", line 91, in handle_authorizations
    self._poll_authorizations(authzrs, max_retries, best_effort)
  File "/usr/lib/python2.7/site-packages/certbot/_internal/auth_handler.py", line 180, in _poll_authorizations
    raise errors.AuthorizationError('Some challenges have failed.')
AuthorizationError: Some challenges have failed.

_az · January 23, 2021, 3:02am

When using the webroot authenticator, the straightforward test is to create a test file:

echo a > /var/lib/letsencrypt/.well-known/acme-challenge/test-file

and try fetch http://example.com/.well-known/acme-challenge/test-file from an external host.

There's not really much that can go wrong, since Certbot is not interacting with your webserver in the course of obtaining the certificate. Either files in there are accessible or they aren't.

z929669 · January 23, 2021, 3:16am

My setup uses:

# mkdir -p /var/lib/letsencrypt/.well-known
# chgrp nginx /var/lib/letsencrypt
# chmod g+s /var/lib/letsencrypt

do you mean fetch 'http' or 'https'? Obviously http is accessible, else I would not have been able to successfully renew. Server is https now.

curl http://stepmodifications.org/.well-known/test_file
<html>
<head><title>403 Forbidden</title></head>
<body>
<center><h1>403 Forbidden</h1></center>
<hr><center>nginx</center>
</body>
</html>

_az · January 23, 2021, 3:18am

Great! This is likely the same problem that Certbot is encountering when it tries to perform a dry-run renewal.

Now you will be able to check your nginx error.log and filesystem permissions to see why nginx refuses to serve the test file up.

Once you overcome the issue with the test file, the Certbot renewal should start working too.

z929669 · January 23, 2021, 3:36am

OK, I commented the IP filter I had applied, so this was blocking traffic. Now I'm getting:

root@test:[~]# curl http://stepmodifications.org/.well-known/acme-challenge/test-file
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>

The test file is there with chmod 755. I get this error with/without using http/s

Are you saying that this is purely an access issue? how was I able to register the cert successfully in the first place?

schoen · January 23, 2021, 3:47am

Is your test file in .well-known or in .well-known/acme-challenge?

z929669 · January 23, 2021, 4:06am

I had to create .well-known/acme-challenge/test-file (just a file with a text string)

curl http://stepmodifications.org/.well-known/acme-challenge/test-file

my letsencrypt nginx location:

location ^~ /.well-known/acme-challenge/ {
	access_log		/var/log/nginx/letsencrypt_access.log;
	error_log		/var/log/nginx/letsencrypt_error.log error;
	rewrite_log on;
	allow all;
	root /var/lib/letsencrypt/;
	default_type "text/plain";
	try_files $uri =404;
}

nginx error:
2021/01/23 04:00:33 [error] 8080#8080: *6663 open() "/usr/share/nginx/html/.well-known/acme-challenge/test-file" failed (2: No such file or directory), client: 159.65.167.20, server: localhost, request: "GET /.well-known/acme-challenge/test-file HTTP/1.1", host: "stepmodifications.org"

Not sure why nginx is looking in /usr/share/nginx/html/ though

_az · January 23, 2021, 4:28am

To me, it suggests the above snippet is not actually included in the virtualhost for stepmodifications.org.

_az · January 23, 2021, 4:33am

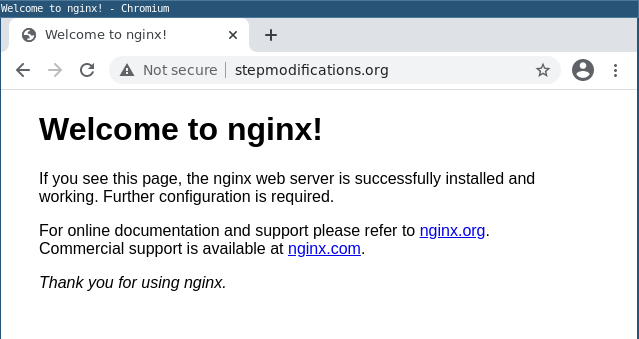

The other thing peculiar is that you posted this configuration:

so any request to port 80 should get a 301 response, right?

That's not how your server behaves:

$ curl -i 138.197.49.211
HTTP/1.1 200 OK
Server: nginx

z929669 · January 23, 2021, 4:35am

Requests to my server work fine, and you can access it to verify (stepmodifications.org). Redirects to www and port 80 all redirect to this URL. My relevant nginx server blocks:

# CATCH ALL HTTP TRAFFIC AND SEND IT TO HTTPS
server {

     listen 80;
     listen [::]:80;
     server_name _ default_server;

     return 301 https://$host$request_uri;
}

# SEND WWW REQUESTS TO NON-WWW
server {

     listen 443 ssl http2;
     listen [::]:443 ssl http2;
     server_name www.stepmodifications.org;

     # *** SSL CONFIG **********************************************************************
     include inc/main_letsencrypt.conf;

     ssl_certificate /etc/letsencrypt/live/www.stepmodifications.org/fullchain.pem;
     ssl_certificate_key /etc/letsencrypt/live/www.stepmodifications.org/privkey.pem;
     ssl_trusted_certificate /etc/letsencrypt/live/www.stepmodifications.org/chain.pem;

     include inc/main_ssl.conf;
     # *** STD CONFIG **********************************************************************

     # SSL CERT REQUIRES RESOLUTION OF THE URL BEFORE REDIRECT; THIS IS WHY THE REDIRECT IS WRAPPED INSIDE THE LOCATION BLOCK
     location / {
          root /srv/sites;
          return 301 $scheme://stepmodifications.org$request_uri;
     }
}

# SITES
server {

     listen 443 ssl http2;
     listen [::]:443 ssl http2;
     server_name stepmodifications.org;
     root /srv/sites;

     index index.php index.html;

     client_max_body_size 5M;

     # *** SSL CONFIG **********************************************************************
     include inc/main_letsencrypt.conf;

     ssl_certificate /etc/letsencrypt/live/stepmodifications.org/fullchain.pem;
     ssl_certificate_key /etc/letsencrypt/live/stepmodifications.org/privkey.pem;
     ssl_trusted_certificate /etc/letsencrypt/live/stepmodifications.org/chain.pem;

     include inc/main_ssl.conf;

     # *** STD CONFIG **********************************************************************

     # REDIRECT BASE DOMAIN URL TO WIKI
     rewrite ^/$ /wikidev;

     # See: https://www.semantic-mediawiki.org/wiki/Help:Pretty_URIs
     rewrite ^/id/(.*) /wikidev/Special:URIResolver/$1;

     include inc/main_common.conf;
#    include inc/main_wiki.conf;
     include inc/main_mwiki.conf;
     include inc/main_wikidev.conf;
     include inc/main_forumdev.conf;
#    include inc/main_forum.conf;
#    include inc/main_ipb3.conf;
     include inc/main_ipb4.conf;
     include inc/main_phpmyadmin.conf;
     include inc/main_phpcheck.conf;
}

location ^~ /.well-known/acme-challenge/ {
	allow all;
	root /var/lib/letsencrypt/;
	default_type "text/plain";
	try_files $uri =404;
}

I can't see anything wrong about this config such that nginx would be sniffing it's default path other than it cannot find this one. easy to miss small thing though.

_az · January 23, 2021, 4:51am

Well, not according to curl^^.

(Accidentally edited this post instead of posting a new one, blah).

z929669 · January 23, 2021, 4:42am

but if you use http://www.stepmodifications.org, your browser will redirect to https://stepmodifications.org, so that seems contradictory. Also, port 80 is open, but it won't serve up anything from there. That curl command you used just pings port 80, no?

_az · January 23, 2021, 4:53am

It seems contradictory, but your browser behaves this way because it is caching the HSTS rule that you are sending in your headers.

In fact, try from a fresh browser with no previous state/memory, and the result is:

no-hsts

Well, the Let's Encrypt challenge will always begin on port 80.

So unless you get your 301 redirect to work, the request is not going to end up being correctly served.

I'd try:

Checking nginx -T to make sure you don't have any other default_server port 80 virtualhosts that may be competing with your HTTP 301.
Killing off nginx fully to make sure that the effectively loaded configuration is the one that is actually on disk:
```
sudo service nginx stop && sudo killall -9 nginx && sudo service nginx start
```

z929669 · January 23, 2021, 4:59am

UR awesome.

Indeed, I did have a default.conf file that must've come from a recent update. It was conflicting with my listed on 80, since it was the first nginx inclusion.

root@tescurl -i 138.197.49.211
HTTP/1.1 301 Moved Permanently
Server: nginx
Date: Sat, 23 Jan 2021 04:57:34 GMT
Content-Type: text/html
Content-Length: 162
Connection: keep-alive
Location: https://138.197.49.211/

<html>
<head><title>301 Moved Permanently</title></head>
<body>
<center><h1>301 Moved Permanently</h1></center>
<hr><center>nginx</center>
</body>
</html>

All is fine and the world makes sense once more.

Thank you!

system · February 22, 2021, 4:59am

This topic was automatically closed 30 days after the last reply. New replies are no longer allowed.
