How To Successfully Install CertBot on Apache on CentOS 6

Neilpang · June 19, 2016, 7:34am

cool.

Then you should google for “how to deploy ssl certificate on apache”.

pfg · June 19, 2016, 7:34am

I’m not sure why your apache is currently serving anything via HTTPS. Based on your last httpd -S output, there’s no VirtualHost listening on :443. Did anything change about your vhost configuration in the meantime?

Curious about the output of httpd -S and grep -r "VirtualHost" /etc/httpd/.

Neilpang · June 19, 2016, 7:35am

@souvikghosh2701

" ‘cert success’ " only means the certificate is successfully issued.

You must know how to deploy this cert to your apache server.

Neilpang · June 19, 2016, 7:36am

If it is possible, please PM your domain name and your httpd.conf. I’d like to take a look.

souvikghosh2701 · June 19, 2016, 7:55am

Here’s the outcome :

 $ httpd -S and grep -r "VirtualHost" /etc/httpd/
    Usage: httpd [-D name] [-d directory] [-f file]
                 [-C "directive"] [-c "directive"]
                 [-k start|restart|graceful|graceful-stop|stop]
                 [-v] [-V] [-h] [-l] [-L] [-t] [-S]
    Options:
      -D name            : define a name for use in <IfDefine name> directives
      -d directory       : specify an alternate initial ServerRoot
      -f file            : specify an alternate ServerConfigFile
      -C "directive"     : process directive before reading config files
      -c "directive"     : process directive after reading config files
      -e level           : show startup errors of level (see LogLevel)
      -E file            : log startup errors to file
      -v                 : show version number
      -V                 : show compile settings
      -h                 : list available command line options (this page)
      -l                 : list compiled in modules
      -L                 : list available configuration directives
      -t -D DUMP_VHOSTS  : show parsed settings (currently only vhost settings)
      -S                 : a synonym for -t -D DUMP_VHOSTS
      -t -D DUMP_MODULES : show all loaded modules
      -M                 : a synonym for -t -D DUMP_MODULES
      -t                 : run syntax check for config files

pfg · June 19, 2016, 7:57am

Those are separate commands, i.e.:
httpd -S
and
grep -r "VirtualHost" /etc/httpd/

souvikghosh2701 · June 19, 2016, 8:17am

Oops Sorry ! :3
Here you go with the result of the first query –

VirtualHost configuration: wildcard NameVirtualHosts and _default_ servers: *:443 is a NameVirtualHost default server lixxxx-251.members.linode.com (/etc/httpd/conf.d/ssl.con f:74) port 443 namevhost lixxxx-251.members.linode.com (/etc/httpd/conf.d/ssl .conf:74) *:80 is a NameVirtualHost default server www.mydomain.com (/etc/httpd/conf.d/domain1.conf:3) port 80 namevhost www.mydomain.com (/etc/httpd/conf.d/domain1.conf :3) alias mydomain.com Syntax OK

And Here’s The Result For the 2nd one !

/etc/httpd/conf/httpd.conf:# ports, in addition to the default. See also the <VirtualHost> /etc/httpd/conf/httpd.conf:# <VirtualHost> definition. These values also provide defaults for /etc/httpd/conf/httpd.conf:# any <VirtualHost> containers you may define later in the file. /etc/httpd/conf/httpd.conf:# All of these directives may appear inside <VirtualHost> containers, /etc/httpd/conf/httpd.conf:# If you do not specify an ErrorLog directive within a <VirtualHost> /etc/httpd/conf/httpd.conf:# logged here. If you *do* define an error logfile for a <VirtualHost> /etc/httpd/conf/httpd.conf:# If you do not define any access logfiles within a <VirtualHost> /etc/httpd/conf/httpd.conf:# define per-<VirtualHost> access logfiles, transactions will be /etc/httpd/conf/httpd.conf:# copying them to /your/include/path/, even on a per-VirtualHost basis. /etc/httpd/conf/httpd.conf:# VirtualHost: If you want to maintain multiple domains/hostnames on your /etc/httpd/conf/httpd.conf:# machine you can setup VirtualHost containers for them. Most configurations /etc/httpd/conf/httpd.conf:#NameVirtualHost *:80 /etc/httpd/conf/httpd.conf:# NOTE: NameVirtualHost cannot be used without a port specifier /etc/httpd/conf/httpd.conf:# VirtualHost example: /etc/httpd/conf/httpd.conf:# Almost any Apache directive may go into a VirtualHost container. /etc/httpd/conf/httpd.conf:# The first VirtualHost section is used for requests without a known /etc/httpd/conf/httpd.conf:#<VirtualHost *:80> /etc/httpd/conf/httpd.conf:#</VirtualHost> /etc/httpd/conf/httpd.conf:NameVirtualHost *:443 /etc/httpd/conf.d/ssl.conf:<VirtualHost _default_:443> /etc/httpd/conf.d/ssl.conf:</VirtualHost> /etc/httpd/conf.d/domain1-le-ssl.conf:NameVirtualHost *:80 /etc/httpd/conf.d/domain1-le-ssl.conf:<VirtualHost *:443> /etc/httpd/conf.d/domain1-le-ssl.conf:</VirtualHost> /etc/httpd/conf.d/domain1.conf:NameVirtualHost *:80 /etc/httpd/conf.d/domain1.conf:<VirtualHost *:80> /etc/httpd/conf.d/domain1.conf:</VirtualHost>
Hope That’s what you want !

pfg · June 19, 2016, 8:20am

It seems the client successfully ran at one point and created /etc/httpd/conf.d/domain1-le-ssl.conf.

There’s another file with a SSL vhost, /etc/httpd/conf.d/ssl.conf. Can you try removing everything between <VirtualHost> and </VirtualHost> in that file (including the <VirtualHost> tags themselves), then restart apache and see if the correct page gets served via HTTPS?

souvikghosh2701 · June 19, 2016, 8:44am

Okay So I’ve removed everything between
<VirtualHost _default_:443>
till </VirtualHost> in the /etc/httpd/conf.d/ssl.conf

Now Restarted - while executing service httpd restart I’ve got a warning
[warn] NameVirtualHost *:443 has no VirtualHosts

Now, What I was supposed to do next ?!

Edit :
When I go to www.mydomain.com it redirects me to https://www.mydomain.com as it should…
But I Gives me This

Damnit !

pfg · June 19, 2016, 8:50am

You’re somehow serving HTTP on the HTTPS port now. What are the contents of /etc/httpd/conf.d/domain1-le-ssl.conf?

souvikghosh2701 · June 19, 2016, 8:54am

Here You Go

<IfModule mod_ssl.c>
NameVirtualHost *:80

<VirtualHost *:443>
    ServerAdmin webmaster@mydomain.com
    DocumentRoot /var/www/mydomain.com/public_html
    ServerName www.mydomain.com
    ServerAlias mydomain.com
    ErrorLog /var/www/mydomain.com/error.log
    CustomLog /var/www/mydomain.com/requests.log common
SSLCertificateFile /etc/letsencrypt/live/mydomain.com/cert.pem
SSLCertificateKeyFile /etc/letsencrypt/live/mydomain.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
SSLCertificateChainFile /etc/letsencrypt/live/mydomain.com/chain.pem
</VirtualHost>
</IfModule>

pfg · June 19, 2016, 8:56am

Try adding SSLEngine on anywhere inside of the <VirtualHost> tag and restart apache afterwards.

(That NameVirtualHost *:80 doesn’t seem like it belongs there either, but it might not matter, so let’s see if it works without touching that.)

souvikghosh2701 · June 19, 2016, 9:16am

Do You Meant Something like that ?

<IfModule mod_ssl.c>
NameVirtualHost *:80

<VirtualHost *:443>
    ServerAdmin webmaster@mydomain.com
    DocumentRoot /var/www/mydomain.com/public_html
    ServerName www.mydomain.com
    ServerAlias mydomain.com
    ErrorLog /var/www/mydomain.com/error.log
    CustomLog /var/www/mydomain.com/requests.log common
SSLCertificateFile /etc/letsencrypt/live/mydomain.com/cert.pem
SSLCertificateKeyFile /etc/letsencrypt/live/mydomain.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
SSLCertificateChainFile /etc/letsencrypt/live/mydomain.com/chain.pem

SSLEngine on
</VirtualHost>
</IfModule>

Am I right ?!

pfg · June 19, 2016, 9:23am

That’s what I meant, yes. Re-reading this, though, I remembered that SSLEngine on is already set via Include /etc/letsencrypt/options-ssl-apache.conf, so that’s probably not going to help. (Might be worth checking out just in case - the file should look roughly like this: https://github.com/certbot/certbot/blob/master/certbot-apache/certbot_apache/options-ssl-apache.conf)

Let’s try some other things and see if it helps:

There’s a NameVirtualHost *:443 line in /etc/httpd/conf/httpd.conf. Not sure how it got there, but that doesn’t seem right - try removing that line
Let’s change the NameVirtualHost *:80 in `` to NameVirtualHost *:443

Does that fix anything after restarting apache?

If it doesn’t work, I’m yet again curious about the output of httpd -S.

souvikghosh2701 · June 19, 2016, 9:37am

So Yea - SSLEngine on didn't worked ! ~ So I just removed SSLEngine on line from /etc/httpd/conf.d/domain1-le-ssl.conf

Of course I didn't get it !

Next,
Removed NameVirtualHost *:443 from /etc/httpd/conf/httpd.conf

Didn't get you in this part too !
Did u meant NameVirtualHost *:80 at /etc/httpd/conf/httpd.conf ?
Btw, NameVirtualHost at /etc/httpd/conf/httpd.conf is a commented (#) line..!

Lol that smiley made my day

pfg · June 19, 2016, 9:42am

The contents of /etc/letsencrypt/options-ssl-apache.conf should roughly match https://github.com/certbot/certbot/blob/master/certbot-apache/certbot_apache/options-ssl-apache.conf
Based on your earlier grep output, there's a NameVirtualHost *:443 in /etc/httpd/conf/httpd.conf (no comment in front of it). Try removing that line.

There's a NameVirtualHost *:80 in /etc/httpd/conf.d/domain1-le-ssl.conf. Replace that with NameVirtualHost *:443.

Then, continue here:

souvikghosh2701 · June 19, 2016, 10:27am

Yep - they are matching except this line is missing in mine SSLCompression off

Done

Done !

Executing service httpd restart and...... The warning's gone !

Now going to www.mydomain.com

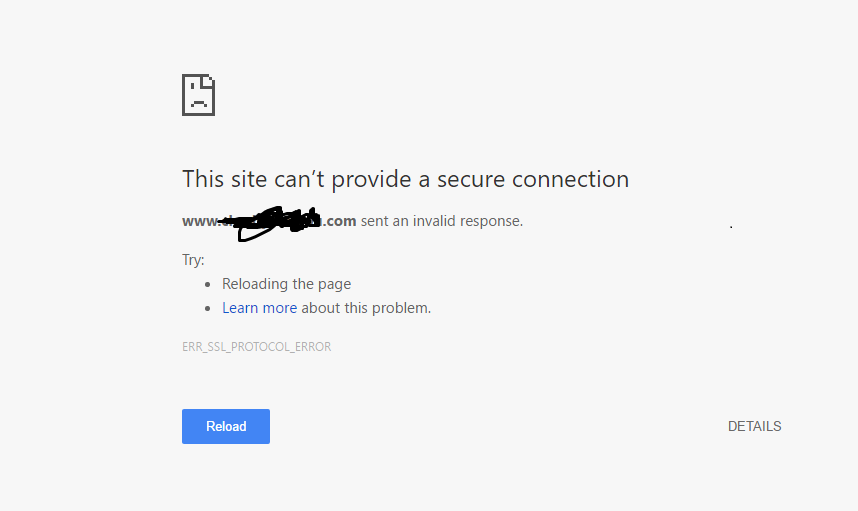

Same Error !

https://cdn.discourse.org/letsencrypt/uploads/default/optimized/2X/d/dffad98ccd579cdc3dbdc701069e42ffed409632_1_690x410.png

pfg · June 19, 2016, 10:34am

It still appears to be serving HTTP on port 443. I don’t see any remaining issues with the files you’ve provided so far, so I’m pretty much out of ideas. If you’d like, you could upload your /etc/httpd directory (as a .tar or .zip file or something like that) and send it to me privately so I can inspect the remaining files for anything that could be causing this.

souvikghosh2701 · June 19, 2016, 5:02pm

Hello @pfg As you told - I’ve Pm’ed you my etc/httpd folder to you…
Please check out asap

pfg · June 20, 2016, 4:15am

I’ve reviewed the configuration and seem to have gotten SSL working by removing the <IfModule mod_ssl.c> and </IfModule> lines in /etc/httpd/conf.d/domain1-le-ssl.conf.

I’m not 100% certain, but I think this might be due to the fact that mod_ssl is enabled through /etc/httpd/conf.d/ssl.conf, which might not included before /etc/httpd/conf.d/domain1-le-ssl.conf, so when apache evaluates that file, mod_ssl might not be loaded yet. Either way, this seems to make it work.
